Metal Plate & Pipe Straightening | 100 Ton C-Frame Leveling Press

Technical Specifications

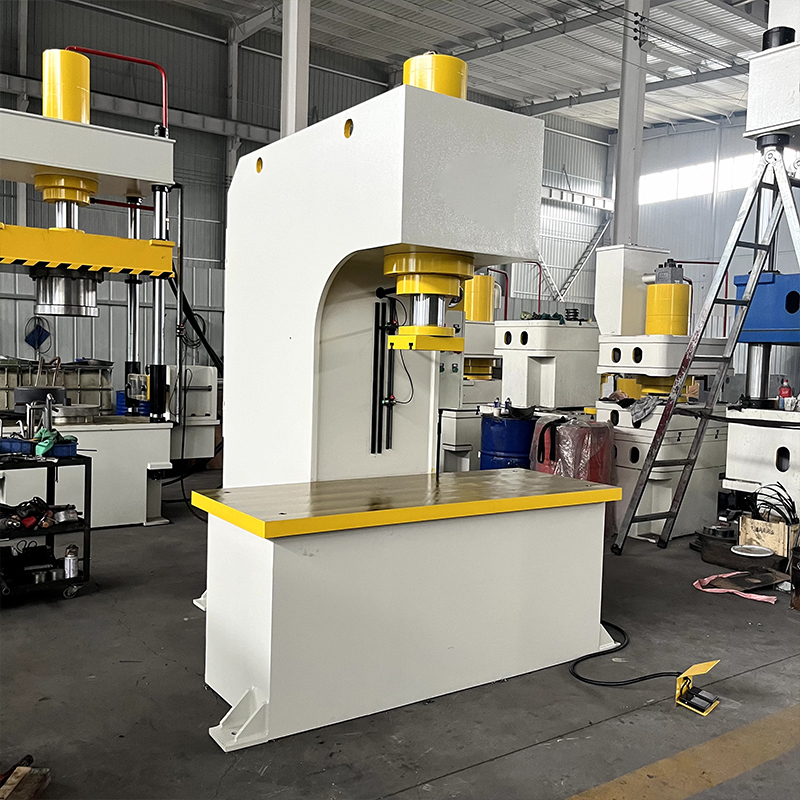

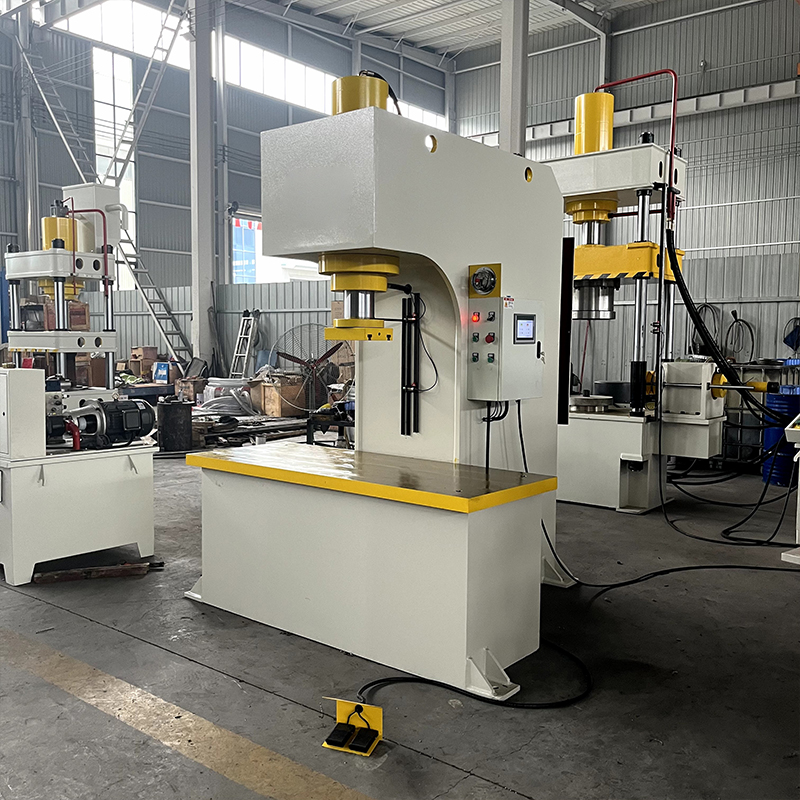

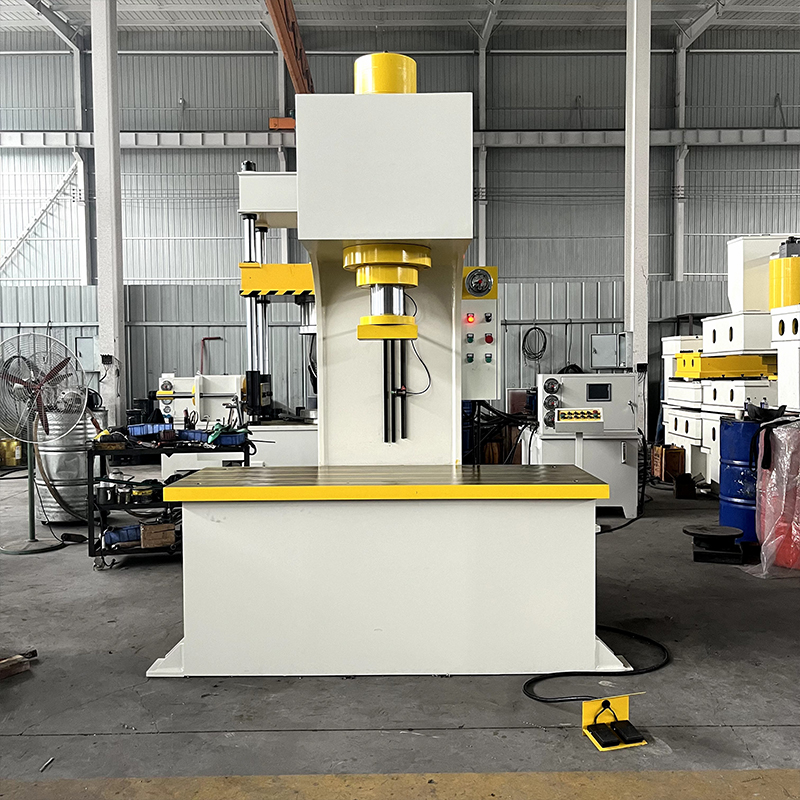

• C-type single column structure.

• The hydraulic press machine is mainly composed of main body, main cylinder, hydraulic system, PLC control system, pedal control, and related components.

• The C-frame is made of heavy-duty, all-steel welded structure and undergoes stress relief annealing treatment. This guarantees high rigidity, stability, and resistance to deformation under heavy loads.

• The machine is firmly anchored to the foundation with anchor bolts, ensuring operational safety and stability.

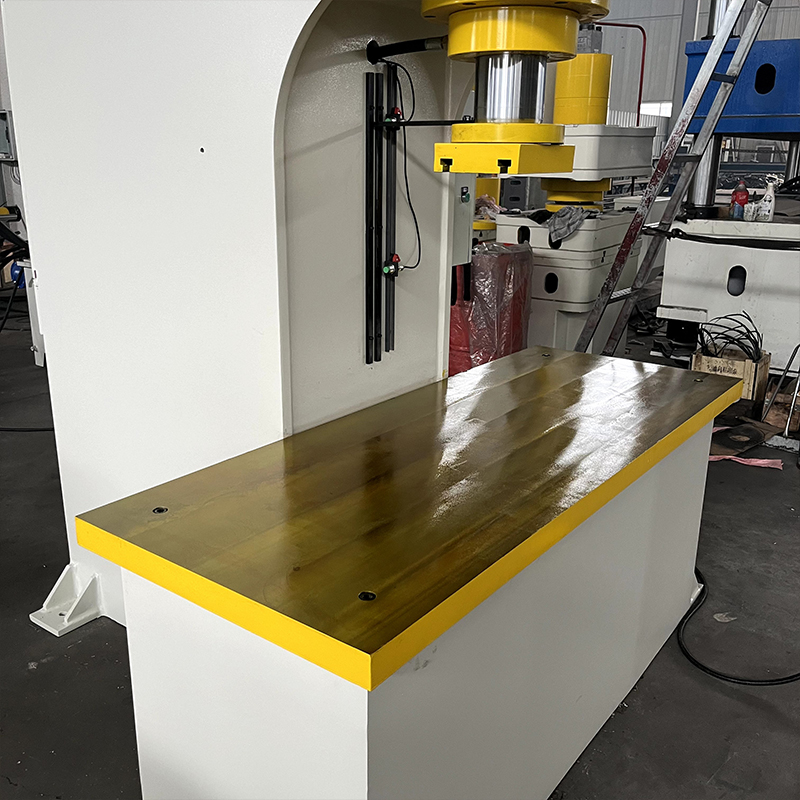

• T-slots are provided on the surface of the ram and the lower working table, allowing convenient fixture mounting and versatile applications.

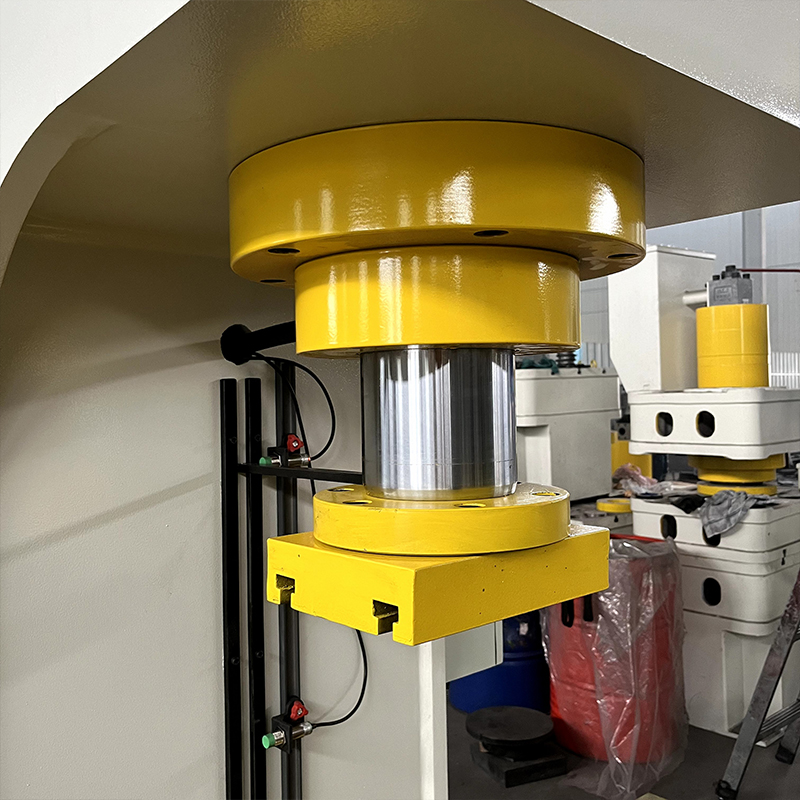

• The main cylinder is installed in the upper beam of the main body.

• The main cylinder and piston rod are made from high-strength 45# forged steel for reliable and durable performance.

• The hydraulic system is located on the top of the machine, simplifying maintenance and repairs while conserving floor space.

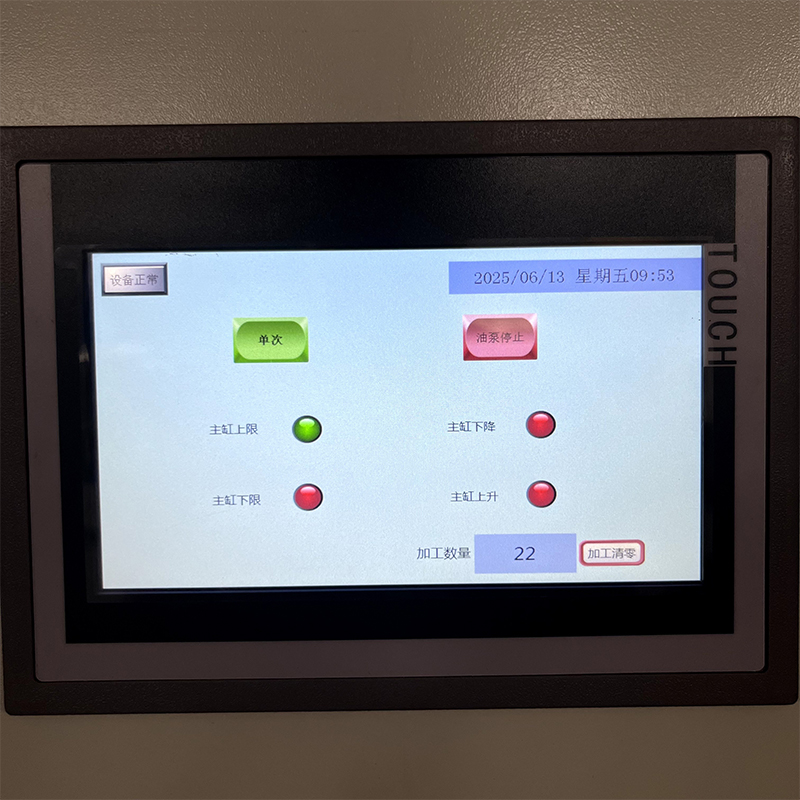

• Siemens PLC control and pedal control enable convenient, flexible, and reliable operation and monitoring of the whole process.

• The structure is simple, easy to operate, and convenient for maintenance, repairs, and service.

• This is a new piece of equipment (including all components and accessories), manufactured with high-caliber materials. All mechanical components are advanced, reliable, and conform to relevant international standards.

• Metal components and instruments are rust-proof and painted, except for machining and electroplating surfaces.

• All devices and instruments conform to SI (international) standards of measurement, and their design, manufacturing, and testing follow international industrial standards (ISO) and IEC (with a minimum protection grade of IP54 for all electrical components).
