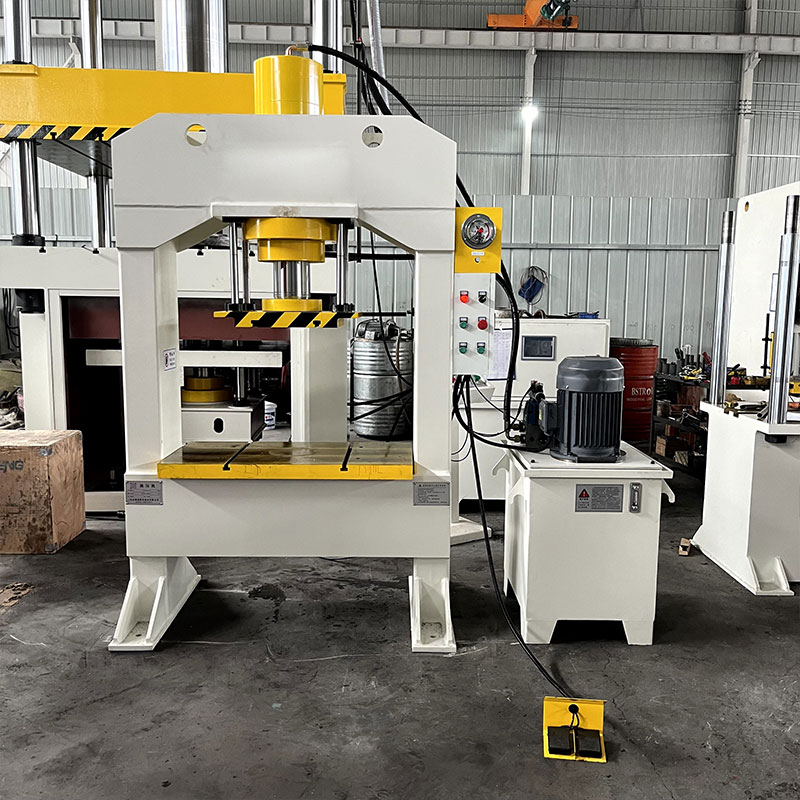

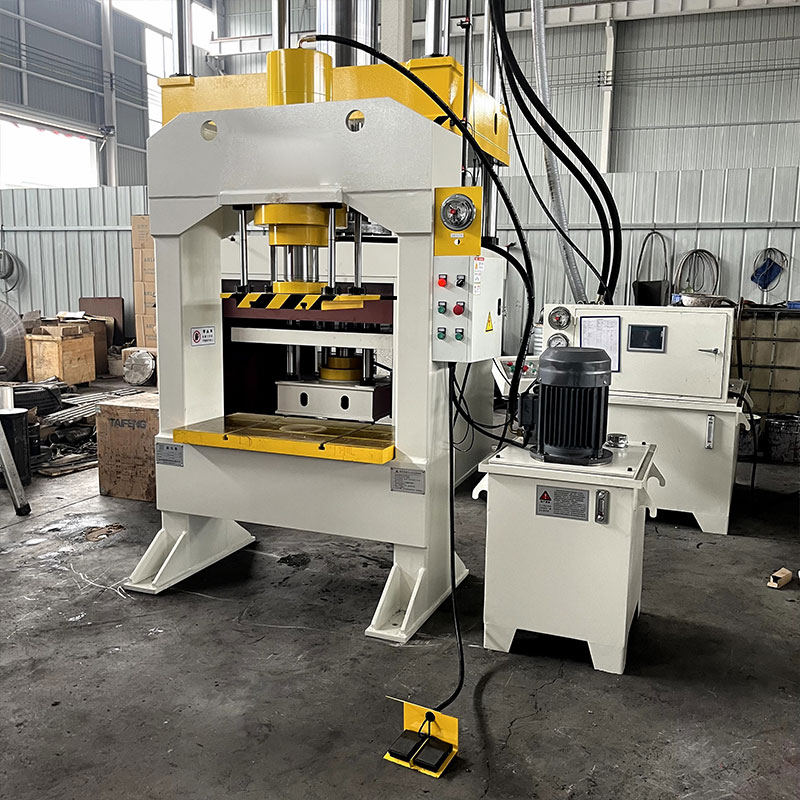

About Gantry Hydraulic Press
This gantry press is engineered for automotive repair shops, specializing in chassis straightening, bearing pressing, and frame correction. Key features include adjustable pressure control, overload protection, and heavy-duty stability, making it a must-have for efficient and safe vehicle maintenance.
Product Overview
The 100-ton gantry press (220,462 lbs) offers adjustable pressure (20%~100% / 44,092~220,462 lbs) for precision repairs. Its open-front design fits large vehicle components, while the CE-certified safety system ensures reliable operation.
Key Features
✅ Auto Repair Focus Optimized for chassis, bearings, and frame repairs.

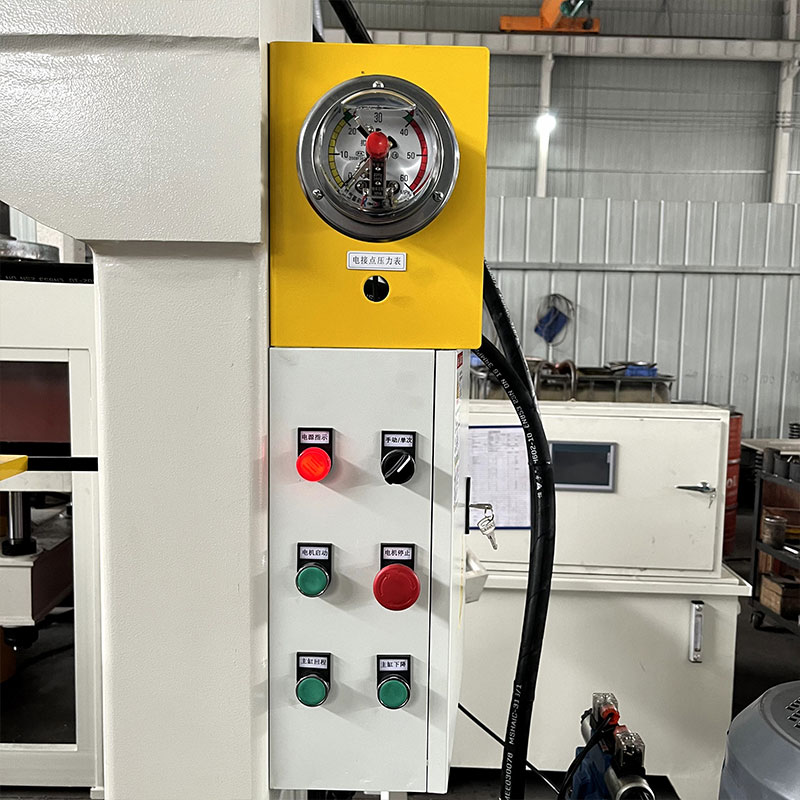

✅ Smart Pressure Control Digital panel adjusts force to prevent part damage.

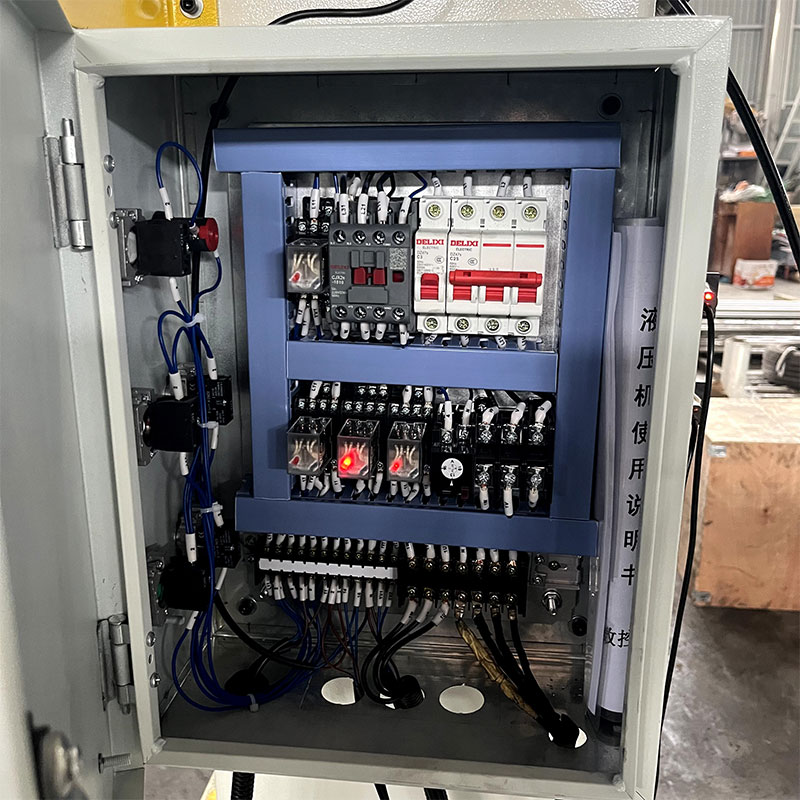

✅ Safety First Overload shutdown + emergency return, CE certified.
✅ Cost Saving 7.5KW (10 HP) motor reduces energy costs by 30%.
Applications
🔧 Chassis Straightening 🔧 Wheel Bearing Pressing
🔧 Frame Restoration 🔧 Heavy Suspension Repairs
Hydraulic Press Specification Table
| Model | 20T | 40T | 63T | 100T | 200T | 500T |
|---|---|---|---|---|---|---|
| Nominal Pressure (kN) | 200 | 400 | 630 | 1000 | 2000 | 5000 |
| System Pressure (MPa) | 18 | 20 | 30 | 30 | 29 | 25 |
| Ram Stroke (mm) | 200 | 200 | 200 | 360 | 400 | 800 |
| Daylight Opening (mm) | 400 | 400 | 460 | 500 | 600 | 1200 |

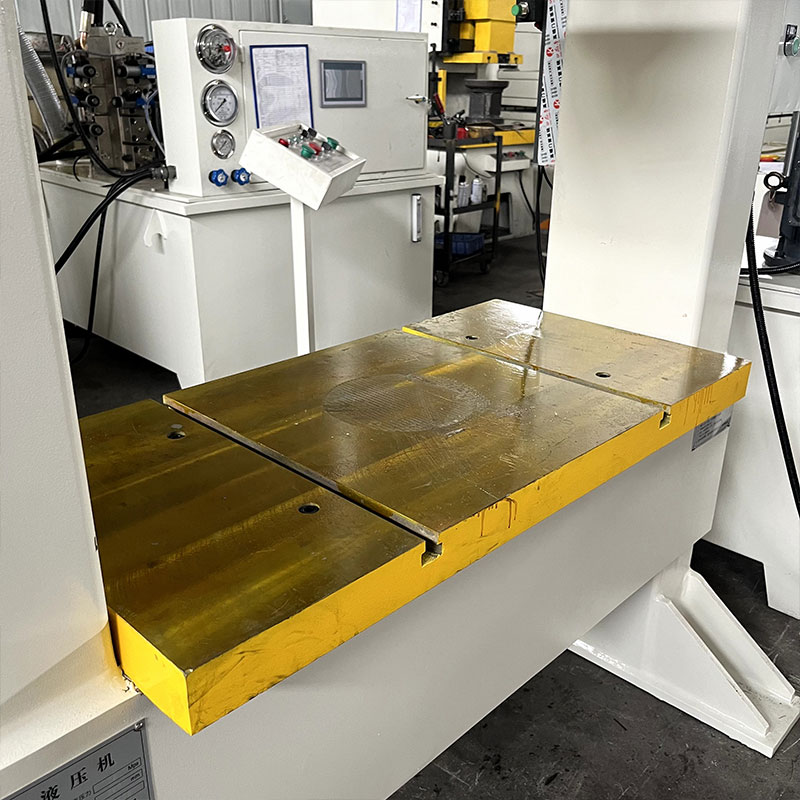

| Table Size (mm) | 360 × 400 | 400 × 600 | 400 × 600 | 460 × 800 | 500 × 1000 | 1200 × 800 |
| Motor Power (kW) | 2.2 | 2.2 | 5.5 | 7.5 | 11 | 37 |
