Product Overview

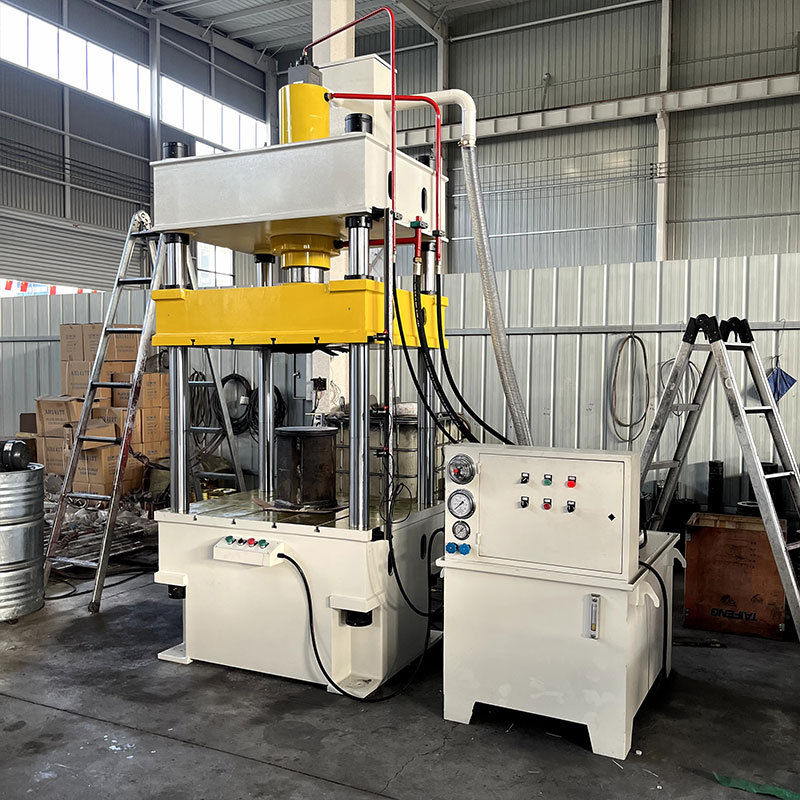

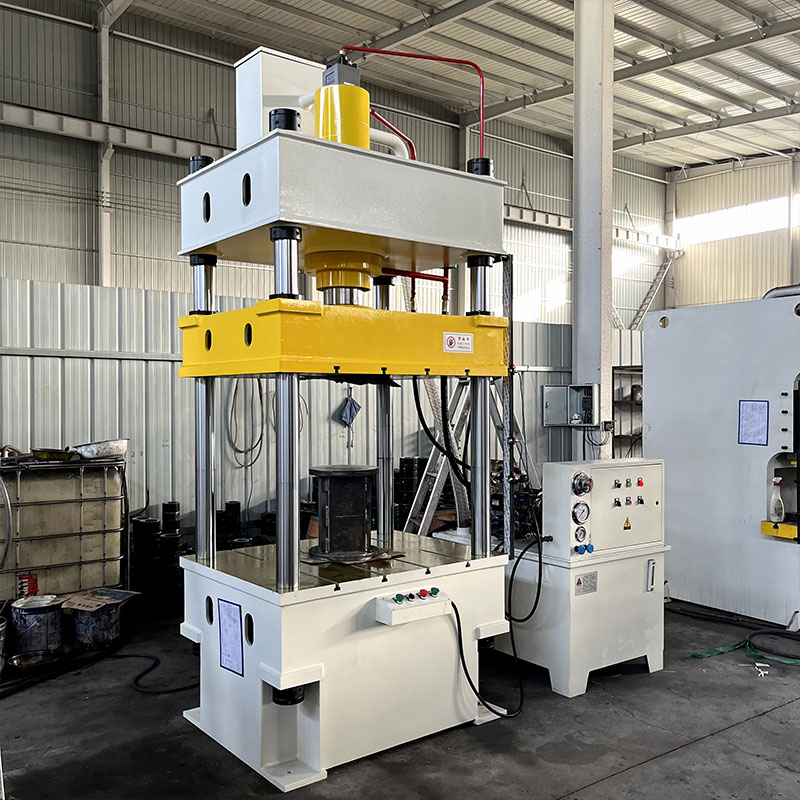

This 100 ton hydraulic press is designed for precision metal sheet stretching and deep drawing. Featuring a 1000×1000mm worktable, 900mm daylight opening, and 600mm stroke, it handles complex thin sheet forming. Equipped with a 20-ton lower ejector (200mm stroke), 380V/7.5KW motor, and 100mm diameter columns, it ensures stable operation for automotive panels, appliance housings, and more.
Key Features
✅ Thin Sheet Focus Precision guidance for 0.5-3mm thickness, scratch-free surfaces.
✅ Efficient Ejector 20-ton lower cylinder boosts demolding speed by 30%.
✅ Deep Drawing Capacity 900mm opening and 600mm stroke for multi-stage forming.
✅ Robust Design 100mm columns resist deflection, 7.5KW motor saves energy.
Applications
🔧 Automotive Panel Stretching 🔧 Stainless Cookware Forming
🔧 Appliance Metal Housing 🔧 Precision Sheet Deep Drawing
