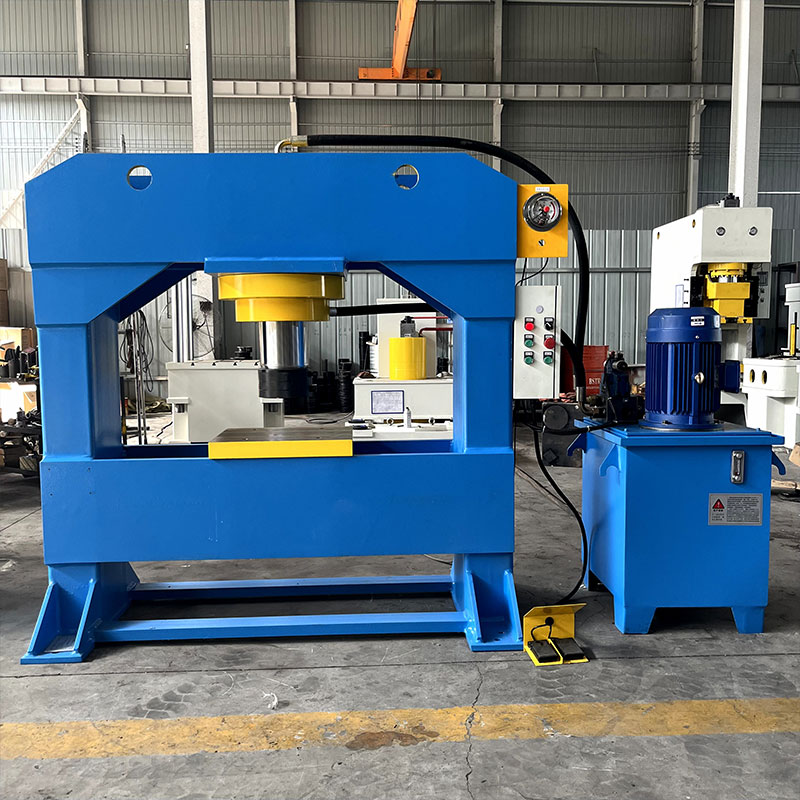

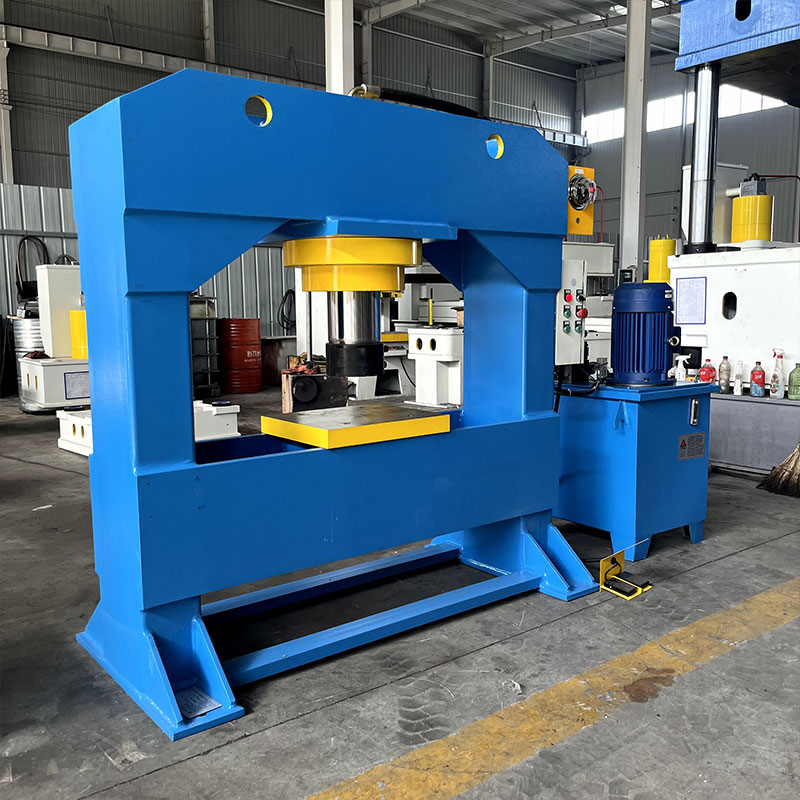

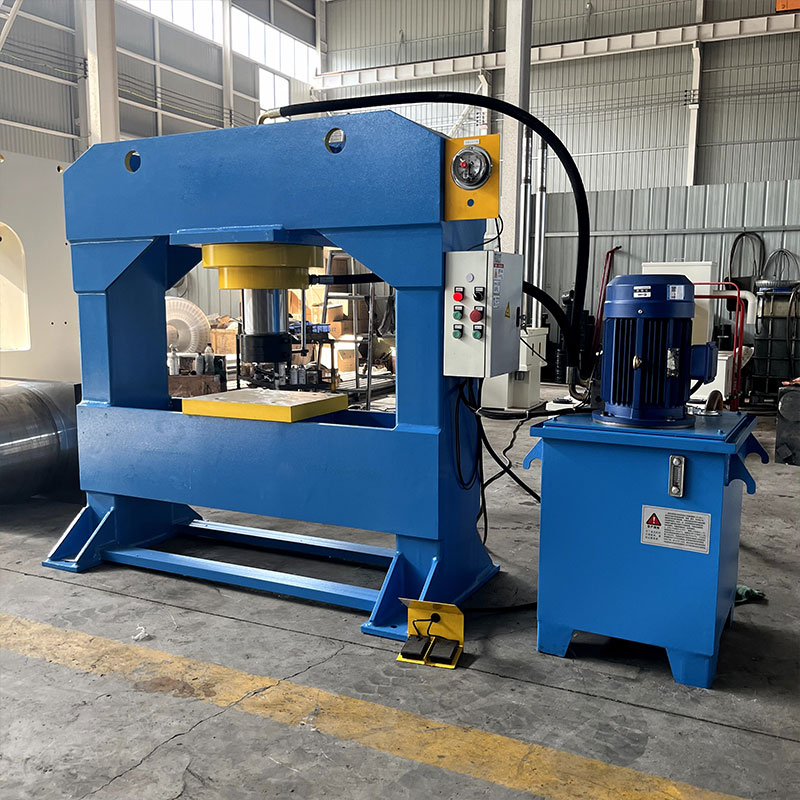

About Gantry Hydraulic Press
The gantry press features a heavy-duty frame with a crossbeam and dual columns, designed for leveling, pressing, and forming large metal workpieces. Key advantages include high load capacity, anti-deflection design, and stable operation, ideal for metal flange leveling, steel structure correction, and plate processing.
Product Overview
This 160-ton gantry hydraulic press (352,740 lbs) offers a 500×400mm table (19.69″×15.75″), 300mm daylight opening (11.81″), and 200mm stroke (7.87″). Powered by a 7.5KW (10 HP) motor and 380V system, it delivers precision and efficiency for metal flange leveling.
Key Features
✅ Flange Leveling Focus Uniform pressure distribution ensures ≤0.1mm (0.004″) flatness.
✅ Robust Construction Welded gantry frame resists deflection by 40%.
✅ Energy Efficient 7.5KW (10 HP) motor reduces operational costs by 25%.
✅ Easy Access Open workspace for large flange handling.
Applications
🔧 Metal Flange Leveling 🔧 Steel Structure Correction
🔧 Large Plate Pressing 🔧 Industrial Part Repair
