About Multi-Directional Hydraulic Press
A multi-directional press uses multiple cylinders (e.g., main/ side) to apply synchronized or independent forces, designed for complex part forming with precision. Key advantages include multi-axis force control, high stability, and fast cycle times, ideal for automotive bearings, gears, and aerospace forgings.
Product Overview

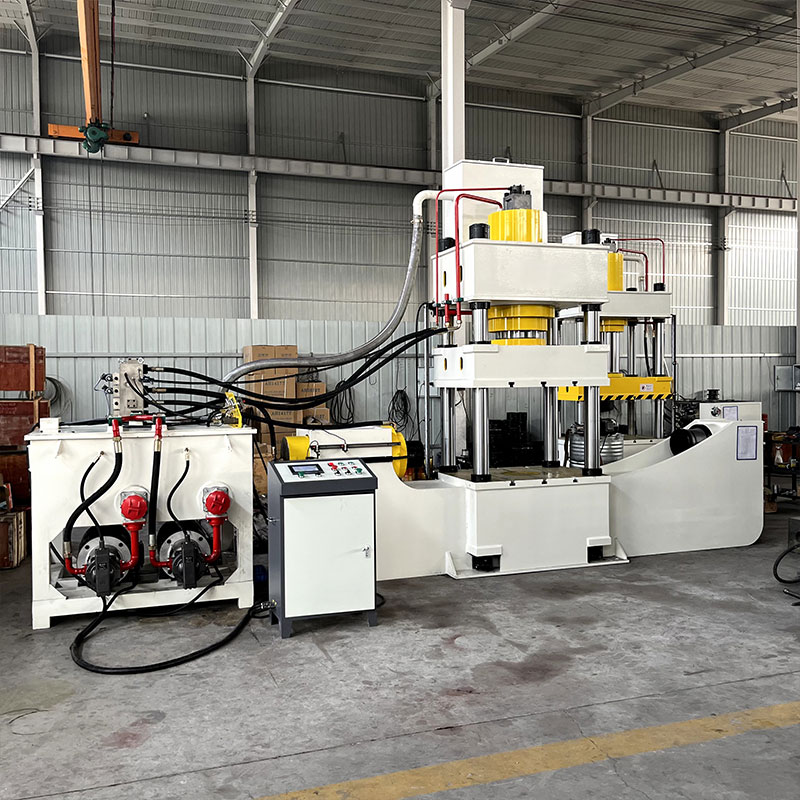

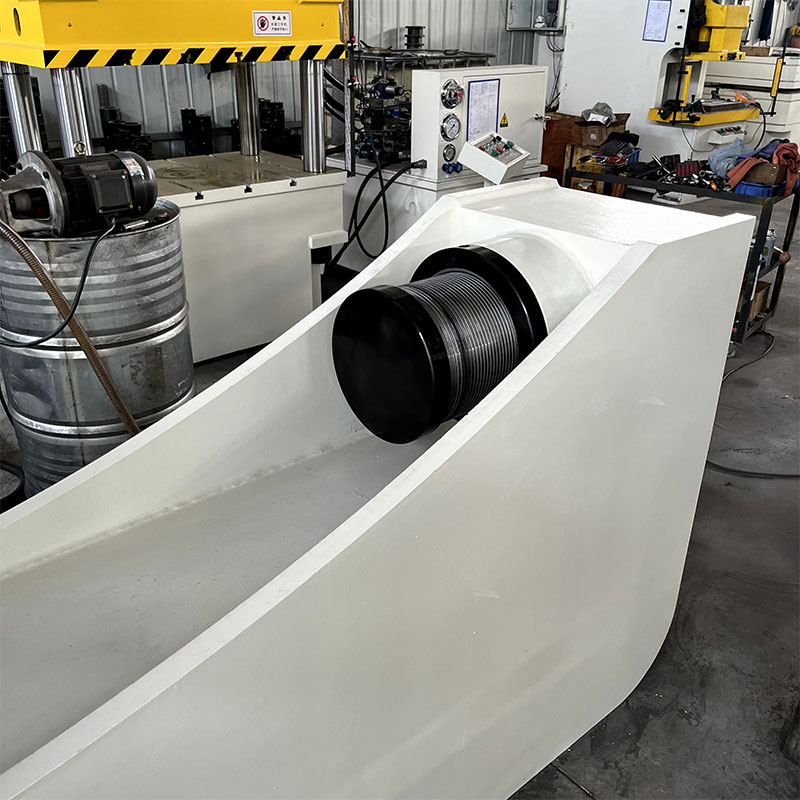

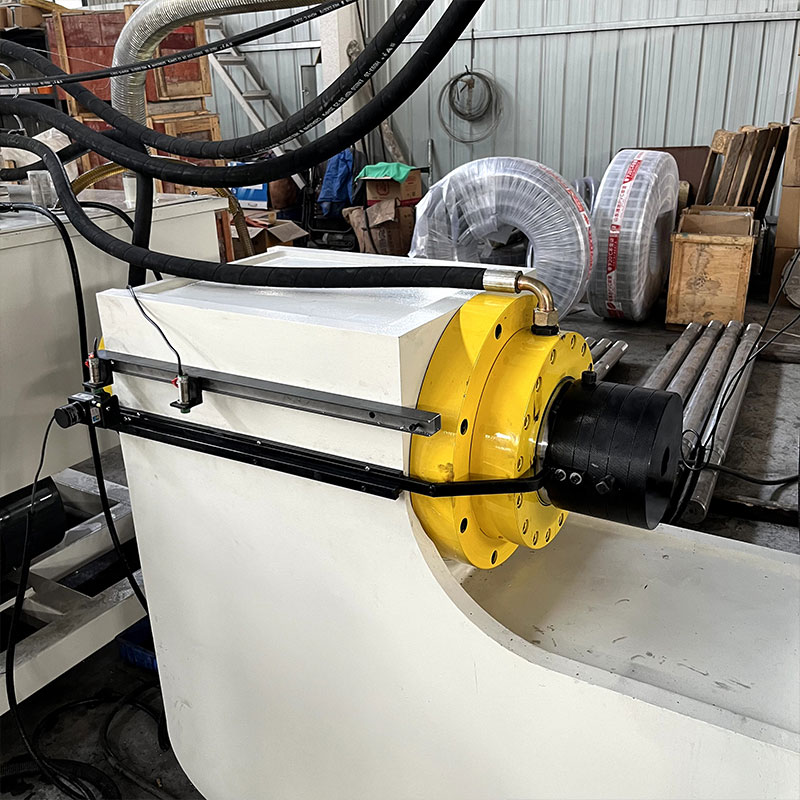

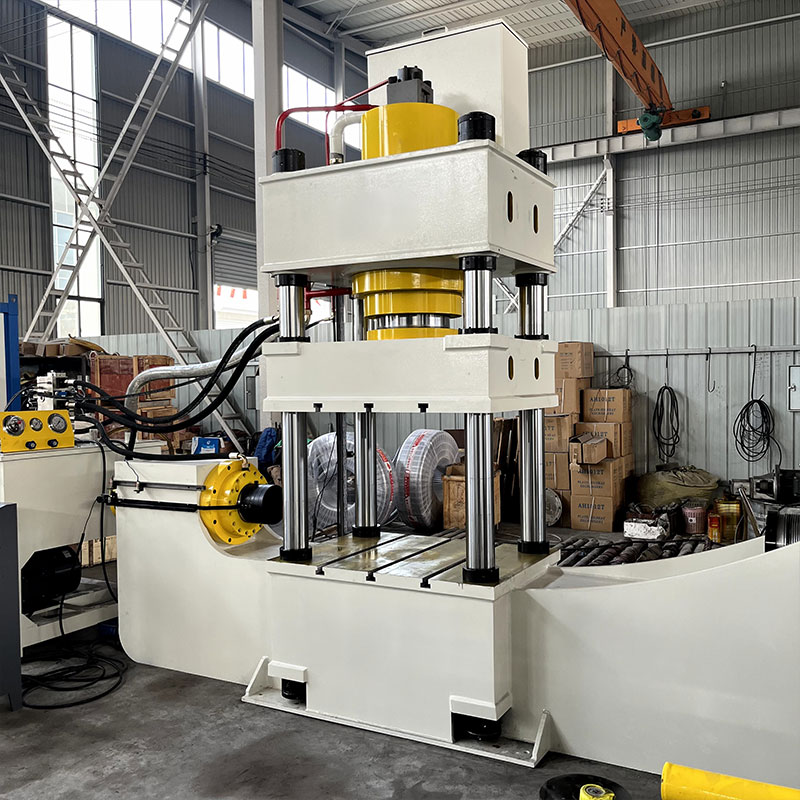

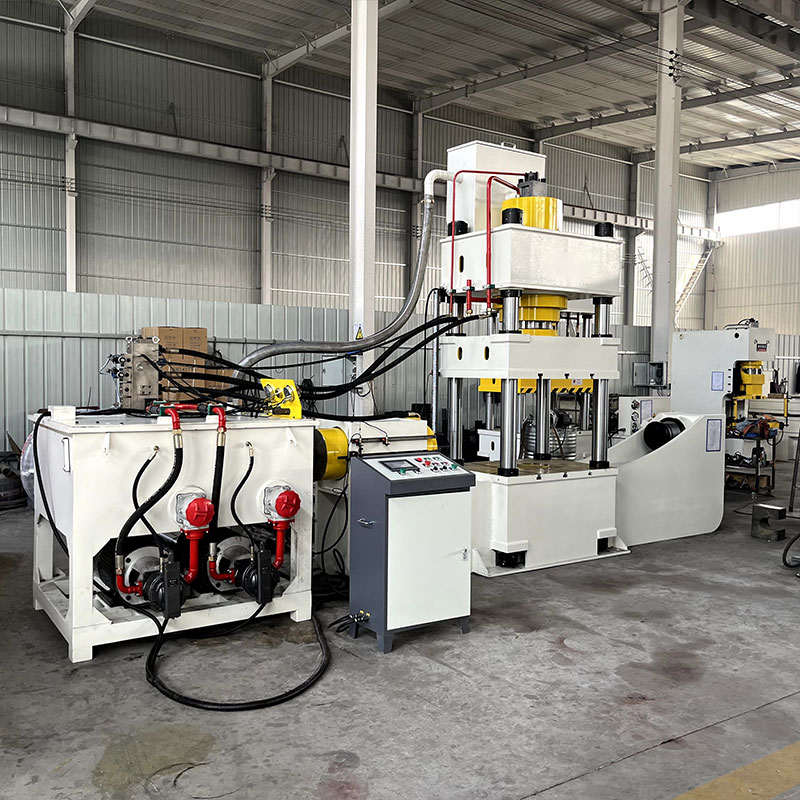

This 315-ton multi-directional press (694,463 lbs) is optimized for automotive bearing pressing. With a 900×900mm table (35.4″×35.4″), 800mm daylight opening (31.5″), and 500mm main stroke (19.7″), it integrates a 200-ton side cylinder (440,925 lbs, 23.6″ stroke), 18.5KW (25 HP) motor, and PLC touchscreen for intelligent multi-axis control.
Key Features
✅ Multi-Axis Forming Main + side cylinders synchronize to shape bearing races with ±0.1mm (0.004″) accuracy.
✅ Large Processing Space 31.5″ opening fits diverse bearing dies.

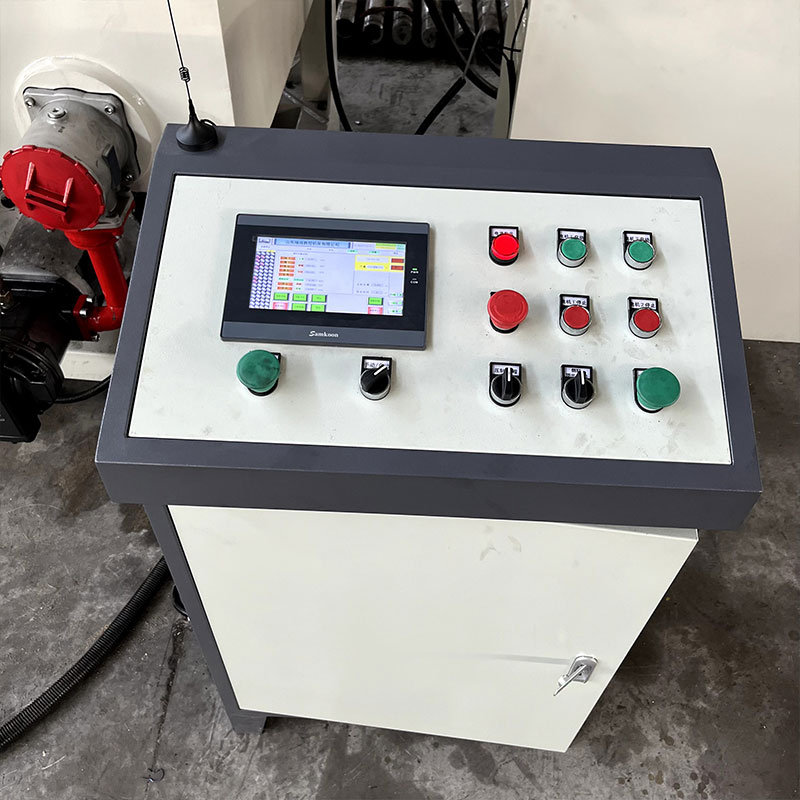

✅ Smart PLC Control Pre-set pressure curves, real-time monitoring, and self-diagnostics.
✅ Energy Efficient 25 HP motor with closed-loop hydraulics cuts energy use by 30%.
Applications
🔧 Automotive Wheel Bearings 🔧 Transmission Gear Forming
🔧 Heavy Machinery Bushings 🔧 Multi-Directional Forging
